Hitachi's Most Popular Large Diggers

The capabilities of Hitachi big diggers, as well as the most popular models, will be explained in this section. Below are the specifications for the ZX470LCH-5G, EX1200-7, EX8000-6, and EX3600-6 models.

Hitachi ZX470LCH-5G Large Diggers

Xara Developers is constructing a coastal defence revetment in West Africa to protect local populations and resources from tidal damage. The 2-kilometer-long, 5.5-meter-high coastal defence project is located near Aboadze, Ghana, on the Gulf of Guinea's shore.

A ZX470LCH-5G is one of three Hitachi excavators used for earthmoving, moving large boulders, maintaining beach areas free, and constructing small rock stockpiles. "The Hitachi machines are quite reliable, and we have very little downtime," project manager Niels Elsnab says. They're also long-lasting, which is critical for this type of project."

ZX470LCH-5G Diggers spec

Sophisticated Hydraulics

The IIIB hydraulic system on the ZX470LCH-5HIOS G cuts fuel consumption and CO2 emissions by 8%. (compared to the previous model). It also improves excavator speed by enabling for fast front movements.

Swing torque, boom lifting capacity, traction, arm digging forces, and bucket digging forces have all been enhanced on the ZX470LCH-5performance G's. The versatile monitor in the cab, which allows you to shift over valves, regulate additional circuit flow, and verify settings, makes switching attachments a snap.

Simple Maintenance

Ground-level access to various parts and components has made servicing and inspecting the ZX470LCH-5G much easier. A long walkway on the left side of the cab allows access to the machine's top structure. Handrails and slip-resistant plates contribute to the safety of the environment.

The gasoline tank of the ZX470LCH-5enormous G allows it to operate continuously for lengthy periods of time. The large excavator's filters and oil offer long service intervals, which reduces your maintenance costs.

Model Code ZX470LCH-5G
Engine Rated Power (kW) 235 kW (315 HP)
Operating weight (kg) 47 800 – 48 300 kg
Backhoe Bucket ISO Heaped 1.90 – 2.5 m³
Max. digging depth (mm) 5,880 – 7,860
Bucket digging force (kN) ISO 295

Hitachi EX1200-7 Large Diggers

EX1200-7 Large Diggers spec

Hitachi's EX-7 series combines intelligence, safety, and maximum efficiency, and is the result of more than a century of group business knowledge.

The Hitachi EX1200-7 excavator is a one-of-a-kind machine that can perform a variety of tasks. The machine looks to be a shockingly simple, user-friendly contraption with deep and detailed engineering at its heart.

Hitachi's newest energy-saving technologies provide the mining industry a long-term answer.

The EX1200-7 incorporates electronically controlled hydraulic pumps, an optimised cooling package, stronger hydraulic circuits, and a range of emission settings to fulfil regulatory standards.

The ultimate result is a machine that is both environmentally conscious and efficient.

Specifications

Model Code EX1200-7
Engine Rated Power (kW) 567.0 kW (760 HP)
Operating weight (kg) 117 000 kg
Backhoe Bucket ISO Heaped 7.00 m³
Max. digging depth (mm) 7 960 - 9 260 mm
Bucket digging force (kN) ISO 569.0

Hitachi EX8000-6 Large Diggers

EX8000-6-specifications

Highly Effective and Efficient

Effortlessly effective
Our EX8000-6 excavator is our most powerful and productive machine. Two Cummins diesel engines provide the necessary power, and our computer-assisted Engine-Pump Control assures maximum efficiency. The flow speed can be raised between unloading and excavation to optimise efficiency even further.

The Hitachi EH4000ACII dump truck, equipped with a 40m3 loading shovel or a 43m3 backhoe bucket, is loaded in three passes by the EX8000-6. In four to five passes, it can load our largest dump truck, the EH5000AC-3.

Engineered To Work 24 Hours A Day

Durability and reliability are incorporated into the DNA of our massive excavators. The EX8000-6 has a strong bottom roller, track links, and drive tumblers, as well as a robust cast track frame and a rigid box construction.

It also contains a variety of simple-to-maintain features that allow it to operate reliably 24 hours a day, seven days a week, even in remote locations. Many components are easily accessible thanks to a large central service area and foldable stairs with wide steps. Parts like bucket teeth and shrouds may be simply replaced to reduce maintenance time.

Specifications

Model Code EX8000-6
Engine Rated Power (kW) 2x 1 450 kW (2x 1 940 HP)
Operating weight (kg) 811 000 kg
Backhoe Bucket ISO Heaped 38.0 - 43 m³
Max. digging depth (mm) 13 800 mm
Bucket digging force (kN) ISO 2 230.0

Hitachi EX3600-6 Large Diggers

Hitachi EX3600-6 Large Diggers specifications

Perfect For Grand Scale Production

Our EX3600-6 excavator has a strong engine and is suited for challenging excavation operations in quarries and mines across the world.

The large-capacity bucket is intended to improve the efficiency of operations. With a 22m3 backhoe bucket or a 21m3 loading shovel bucket, a Hitachi EH3500AC-3 dump truck can be loaded in six passes. Both options provide a lot of breakout and digging potential.

Productivity is further boosted by excellent visibility from the cab. Four (optional) cameras may be utilised to monitor the surrounding area, reducing building site blind spots. Because all controls are conveniently accessible, operating efficiency is improved.

Easy To Maintain

We included a variety of easy-to-maintain features in the EX3600-6 to ensure dependable performance in some of the world's most remote locations, 24 hours a day, seven days a week. Many parts are easily interchangeable and accessible. A passage around the counterweight enables for rapid and safe inspection and maintenance access to critical areas. The requirement for manual lubrication is reduced by using an automated lubrication system.

For enhanced longevity, the EX3600-6 has a durable rigid box design and a solid cast track frame. To minimise damage from rocks, the excavator has high-mounted compact travel motors and an optional travel motor protection. Rugged rail connections with extra roller guides have increased service intervals.

Specifications

Model Code EX3600-6
Engine Rated Power (kW) 1 450 kW (1 944 HP)
Operating weight (kg) 361 000 kg
Backhoe Bucket ISO Heaped 21.0 - 23.0 m³
Max. digging depth (mm) 8 580
Bucket digging force (kN) ISO 1 050.0

Hitachi's Most Popular Mini Diggers

This section will explain the capabilities of Hitachi mini diggers and the most popular versions. Specifications for the ZX10U-6, ZX19-6,ZX26U-6 and ZX33U-6 models are listed below.

Hitachi ZX10U-6 Mini Digger

Hitachi's smallest mini excavator, the ZX10U-6, is adaptable for a variety of applications, easy to operate and maintain, and offers a strong performance.

Hitachi ZX10U-6 Mini Digger information

Powerful and Compact

With a short-tail swing radius of 825mm and a minimum width of 780mm, the ZX10U-6 is ideal for working in small spaces. This may be increased to 1,000mm using the adjustable undercarriage and blade. It has a strong three-cylinder engine that is ideal for demanding excavation work.

Manoeuvring With Efficiency

The ZX10U-6 excavator has high and low travel rates, so it can move about the job site quickly and easily. The bottom roller with the outer flange enhances operator comfort while travelling due to its increased stability.

Transport Is Simple

With a retractable undercarriage and blade, as well as a folding TOPS-compliant roll bar, the ZX10U-6 may be simply altered to make it simpler to handle. The ignition switch is conveniently accessible, and status indications are shown on the monitor.

Hitachi ZX10U-6 Mini Digger Specifications

Model Code ZX10U-6
Engine Rated Power (kW) 9.5 kW (ISO14396)
Operating weight (kg) 1 110
Backhoe Bucket ISO Heaped 0.018 - 0.024 m³
Max. digging depth (mm) 1 780
Bucket digging force (kN) ISO 11.7

Hitachi ZX19-6 Mini Digger

The ZX19-6 is highly adaptive for working in cramped spaces and particularly durable in tough conditions. In terms of fuel usage, it is extremely productive and efficient.

ZX19-6 Mini Digger info

High productivity

The ZX19-6 is a machine with a high output and minimal running costs.

Amazingly Versatile

The ZX19-6 is particularly efficient while working in tight spaces due to its short front minimum turning radius. The boom cylinder protects the boom by being put on top of it.

Long Lasting Product

The high-strength steel blade and large cylinder guard of the ZX19-tough 6 provide consistent performance, letting you to complete the job on schedule and on budget.

Hitachi ZX19-6 Mini Digger Specifications

Model Code ZX19-6
Engine Rated Power (kW) 11.5 kW (ISO14396)
Operating weight (kg) 1920 kg
Backhoe Bucket ISO Heaped 0.02 m³ - 0.05 m³
Max. digging depth (mm) 2 380 mm
Bucket digging force (kN) ISO 16.0 kN

Hitachi
ZX26U-6 Mini Digger

With its Stage V-compliant engine and dependable Hitachi hydraulic system, the ZX26U-6 will function effectively and efficiently. Because it's lightweight and small, it's easy to transport and fits into tight spaces on building sites.

Hitachi  ZX26U-6 Mini

High productivity

The ZX26U-6 is a machine with excellent productivity and minimal running costs.

Outstandingly Versatile

The ZX26U-6 is compact and lightweight, making it perfect for transporting between jobsites. It can be towed on a 3.5-tonne trailer with two buckets and a quick hitch with a grade B+E driver's licence.

Long Lasting Product

The rugged features of the ZX26U-6, such as the boom cylinder guard, hose protection, and reinforced boom end bracket, provide dependable performance, letting you to complete the job on time and on budget.

Hitachi ZX26U-6 Mini Digger Specifications

Model Code ZX26U-6
Engine Rated Power (kW) 15.6 kW (ISO14396)
Operating weight (kg) 2 570 kg - 2 720 kg
Backhoe Bucket ISO Heaped 0.07 m³ - 0.08 m³
Max. digging depth (mm) 2 730 mm
Bucket digging force (kN) ISO 22.3 kN

Hitachi

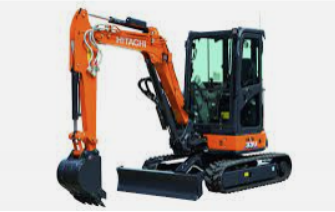

ZX33U-6 Mini Digger

On every construction site, especially those with limited space, the ZX33U-6 was intended to give remarkable performance. It's quick, powerful, and fuel-efficient, as well as having reduced running costs and emitting less emissions.

ZX33U-6 Mini Digger

High productivity

The ZX33U-6 achieves excellent levels of productivity on the building site because to its powerful Stage V-compliant engine, quick cycle time, and efficient hydraulic system.

Outstandingly Versatile

The rugged features of the ZX33U-6, such as reinforced front joints, a reinforced D-frame, and a boom cylinder guard, provide dependable performance, letting you to complete your project on time and on budget.

Long Lasting Product

The unique energy-saving system incorporates ECO mode, auto idle, and isochronous management features to substantially reduce fuel usage. It also reduces noise and pollution.

Hitachi ZX33U-6 Mini Digger Specifications

Model Code ZX19-6
Engine Rated Power (kW) 11.5 kW (ISO14396)
Operating weight (kg) 1920 kg
Backhoe Bucket ISO Heaped 0.02 m³ - 0.05 m³
Max. digging depth (mm) 2 380 mm
Bucket digging force (kN) ISO 16.0 kN

Hitachi's Most Popular Medium Digger

The capabilities of Hitachi medium diggers, and also the most common varieties, will be discussed in this section. Below are the specifications for the ZX85US-6, ZX130-5G, ZX160LC-5G, and ZX220LC-GI machines.

Hitachi ZX85US-6 Medium Digger

Performance

The ZX85US-6 maintains great productivity levels in a range of job areas, especially where space is constrained. It has a lesser environmental effect due to its ground-breaking design and features that reduce fuel consumption and emissions.

Hitachi ZX85US-6 Medium Digger specifications

Efficient productivity

In a variety of task areas, the ZX85US-6 maintains high levels of productivity, even when space is limited. Because of its ground-breaking design and features that cut fuel consumption and emissions, it has a lower environmental impact.

Built To Last

The rugged features of the ZX85US-6, such as the reinforced front attachment and mainframe, provide consistent performance, letting you to complete your project on time and on budget.

Lower Fuel Price

The ECO mode and auto idle capabilities significantly reduce fuel consumption and noise levels.

Model Code ZX85US-6
Engine Rated Power (kW) 42.4 kW (ISO14396)
Operating weight (kg) 8 140 - 8 930 kg
Backhoe Bucket ISO Heaped 0.28 m³
Max. digging depth (mm) 4 110 – 4 610
Bucket digging force (kN) ISO 55 kN

Hitachi ZX130-5G Medium Digger

Long-lasting and dependable

The ZX130-5G is driven by a powerful and durable engine that has proven itself on a variety of challenging job sites across the world. It also has a strong front attachment, due to a variety of reinforced and strengthened components that reduce wear and jolts. We also used larger brackets to bolster the top structural frame and stiffen the undercarriage.

The strong construction of the air-conditioned cab guarantees a safe and comfortable working environment. It boasts lots of legroom and simple access, as well as a readily accessible control panel and levers.

Hitachi ZX130-5G Medium Digger specifications

Low Fuel Consumption

With the ZX130-5G, you can get more done with less. We cut its fuel use by 8% while increasing production by 4%. (compared to the previous ZX120 model). Our HIOS III hydraulic and engine control technologies, which also assist to cut CO2 emissions, are responsible for this. With the new ECO mode, you can cut your fuel use even further (14 percent less fuel compared to the PWR mode).

A quick arm roll-in speed, a fast arm speed when the boom is dropped, and a power boost feature that provides 5% more digging force when needed have all boosted the productivity of the ZX130-5G. For travel over uneven terrain, the traction force has also been raised by 15%.

Specification

Model Code ZX130-5G / ZX130K-5G
Engine Rated Power (kW) 66 kW (88.5 HP)
Operating weight (kg) 12 200 - 13 200 kg
Backhoe Bucket ISO Heaped 0.19 - 0.59 m³
Max. digging depth (mm) 5 1200 - 6 030 mm
Bucket digging force (kN) ISO 104 kN

Hitachi ZX160LC-5G
Medium Digger

Safe and dependable

The strong construction of the air-conditioned cab guarantees a safe and comfortable working environment. With the control panel and levers conveniently situated near the adjustable seat, the ZX160LC-5G gives plenty of legroom and easy access. A multilingual and adaptable display is featured, as well as a rear-view camera.

With its powerful engine and efficient cooling system, this Hitachi medium excavator can work dependably on challenging construction sites all around the world. It also has a strong front attachment, due to a variety of reinforced and strengthened components that reduce wear and jolts. The undercarriage, for example, has been strengthened with thicker brackets, and the top structural frame has also been strengthened.

ZX160LC-5G spec

Great Productivity

Our HIOS III hydraulic system has enhanced the productivity and efficiency of the ZX160LC-5speed G. The power boost feature boosts digging force by 10% as needed, while the auto power lift mode enhances lifting strength by 10% for large objects like as concrete pipes.

Reduced fuel consumption goes hand in hand with improved output. We have reduced fuel consumption by 4% in comparison to the ZX160-3 model, and by 16% in ECO mode (compared to the PWR mode). The ZX160LC-5G is also straightforward to maintain, having features that are easily accessible from ground level for rapid examination. Maintenance tasks are conducted securely thanks to handrails and slip-resistant plates.

Specification

Model Code ZX160LC-5G
Engine Rated Power (kW) 90.2 kW (121 HP)
Operating weight (kg) 16600 - 17700 kg
Backhoe Bucket ISO Heaped 0.60 - 0.82 m3
Max. digging depth (mm) 5 620 - 6 490 mm
Bucket digging force (kN) ISO 122 kN

Hitachi ZX220LC-GI
Medium Digger

A ZAXIS hallmark

Hydraulic technology that no one else can equal, and performance that no one else can match. The ZX220LC-GI ZAXIS-GI Excavators provide trustworthy solutions, such as exceptional fuel efficiency, rapid front actions, and ease of operation.

Another feature of the new Zaxis-GI series is the improved hydraulic system and engine, which are the product of Hitachi's technological acumen and knowledge.

ZX220LC-GI Digger specs

Swift Front Movements - HIOS III Hydraulics

Operating speed increases without reducing fuel consumption thanks to the HIOS III hydraulic system, which was developed utilising industry-leading hydraulic technology and a lot of expertise.

Because of the weight of the boom, actuators function quickly and don't require a regeneration circuit or pressurised oil.

Specification

Model Code ZX220LC-GI
Engine Rated Power (kW) 125 kW (170 ch)
Operating weight (kg) 21 200 - 21 400 kg
Backhoe Bucket ISO Heaped 0,90 - 1,00 m³

Hitachi's Most Popular Wheeled Diggers

The possibilities of Hitachi's wheeled diggers, as well as the most popular versions, will be explained in this section. Below are the specifications for the ZX170W-5A, ZX190W-5A, and ZX210W-5A models.

Hitachi ZX170W-5A Wheeled Digger

The new ZX170W-5A delivers trustworthy features including outstanding fuel efficiency, rapid front motions, and easy operation. Hitachi's technological acumen and abilities are also on exhibit, such as the optimised hydraulic system and engine.

The new ZX170W-5A features excellent quality, low fuel consumption, and outstanding durability, all of which contribute to lower running costs. Thanks to the new ZX170W-5A, which is driven by complete evolution, customers' goals and dreams will be realised, and your colourful future will be pioneered.

ZX170W-5A specifications

Specifications

Model Code ZX170W-5A
Engine Rated Power (kW) 113 kW (153 HP)
Operating weight (kg) 16 800 - 18 300 kg
Backhoe Bucket ISO Heaped 0.60 - 0.70 m3

Hitachi ZX190W-5A Wheeled Digger

The new ZX190W-5A delivers trustworthy features including outstanding fuel efficiency, rapid front motions, and easy operation. Hitachi's technological acumen and abilities are also on exhibit, such as the optimised hydraulic system and engine.

The new ZX190W-5A features excellent quality, low fuel consumption, and good durability, all of which contribute to lower running costs.

The new ZX190W-5A, which has been extensively modified, will bring customers' dreams and ambitions to reality and pave the path for your bright future.

Hitachi ZX190W-5A Wheeled Digger specifications

Specifications

Model Code ZX190W-5A
Engine Rated Power (kW) 113 kW (154 HP)
Operating weight (kg) 18 100 - 19 800 kg
Backhoe Bucket ISO Heaped 0.70 - 0.80 m3

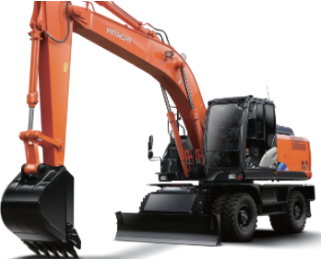

Hitachi ZX210W-5A Wheeled Digger

The new ZX210W-5A delivers trustworthy features including outstanding fuel efficiency, rapid front motions, and easy operation. Hitachi's technological acumen and abilities are also on exhibit, such as the optimised hydraulic system and engine.

The new ZX210W-5A features excellent quality, low fuel consumption, and outstanding durability, all of which contribute to lower running costs.

The new ZX210W-5A, which has undergone considerable development, will bring the goals and wants of customers to life and pave the path for a brighter future.

ZX210W-5A specifications

Specifications

Model Code ZX210W-5A
Engine Rated Power (kW) 113 kW (154 HP)
Operating weight (kg) 20 100 - 21 600 kg
Backhoe Bucket ISO Heaped 0.80 - 0.91 m3

For more information about Hitachi products, you can find them on our Hitachi resource page.
